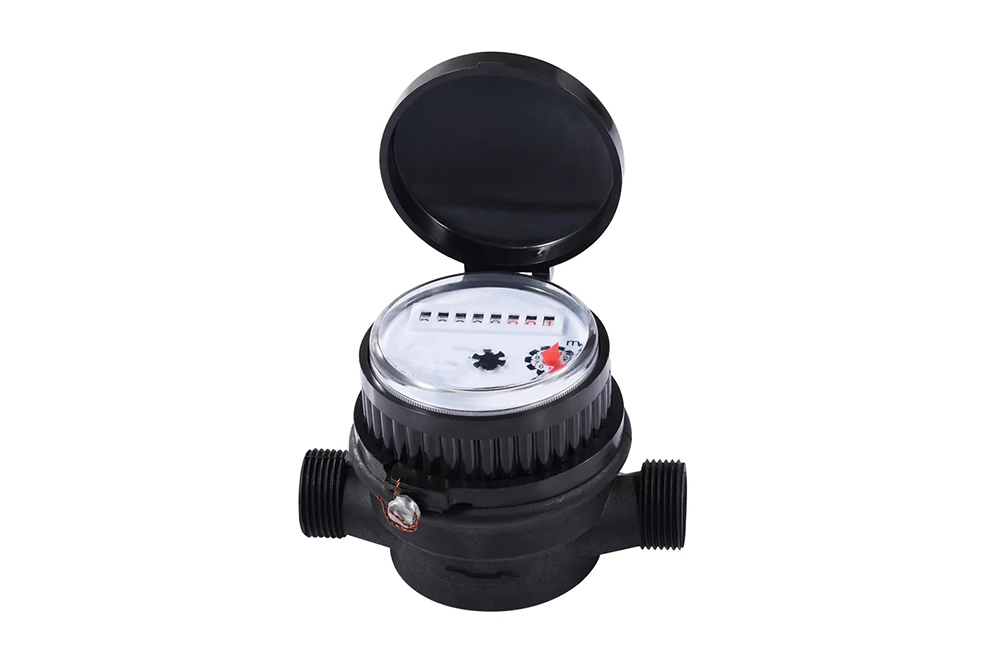

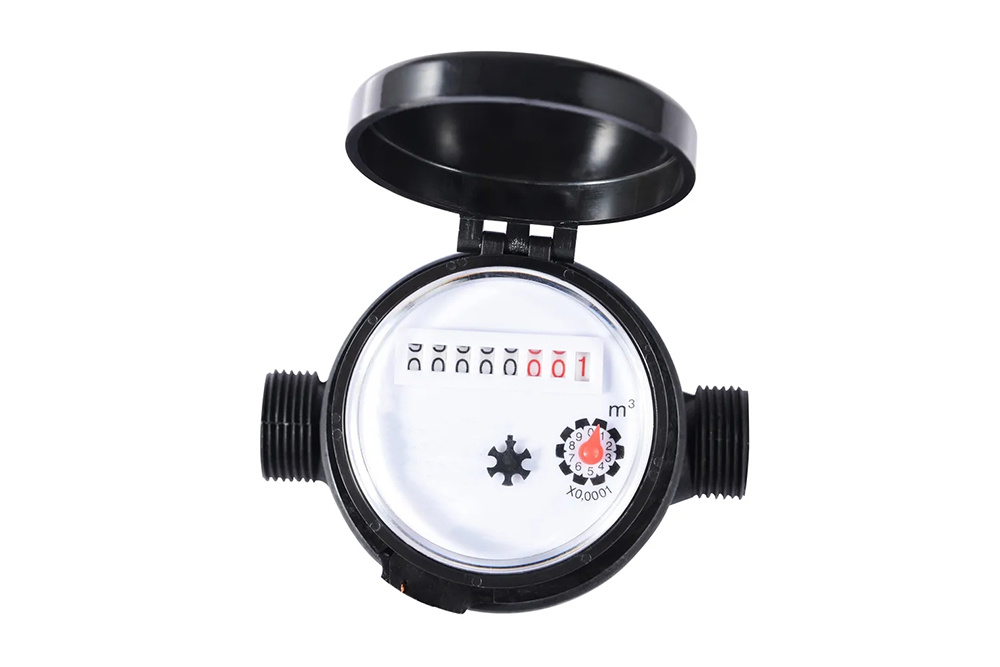

Plastic Single jet Water Meter

Application:

The Plastic Single jet Water Meter LXSC-20D3/P water meters are used to measure the amount of water flowing through a pipeline. It uses a single water jet to spin an impeller inside the meter, which in turn measures the volume of water passing through.

Features:

1. Material:

The main body of the water meter is made of durable plastic, typically a high-quality polymer such as polypropylene or nylon. This material is chosen for its resistance to corrosion and long-term durability.

2. Measuring Mechanism:

The measuring mechanism consists of a rotating impeller or turbine that is driven by the water flow. The rotation of the impeller is directly proportional to the volume of water passing through the meter.

3. Accuracy:

The plastic single jet water meter LXSC-13D3/P is with high accuracy in measuring low to medium flow rates. It provides precise readings within a certain tolerance limit specified by the manufacturer.

4. Ease of Installation:

Single jet water meters are relatively easy to install due to their compact size and straightforward design. They can be installed horizontally or vertically, depending on the specific model and installation guidelines.

5. Pulse Output Option:

The single jet water meters LXSC-D3/P offer a pulse output option, allowing for remote monitoring and integration with automated systems for data collection and analysis.

Working Condition:

1. Water pressure: ≤1.6MPa (16bar);

2.Applicable to cold water, the water temperature ≤40℃;

Product Paramenters

Main Technical Data

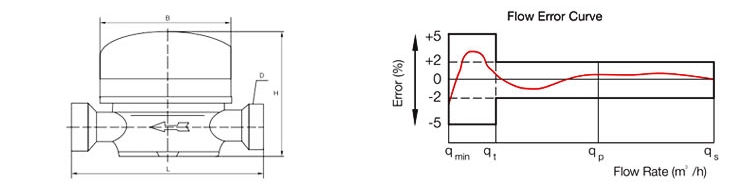

Maximum Permissible Error

±5% at the Low-Zone ranging from min flow/Qmin (including Qmin) to transitional flow/Qt (excluding Qt).

±2% at the High-Zone ranging from transitional flow/Qt to max flow/QS (both Qt and Qs included), if for hot water meter, ±3% error acceptable.

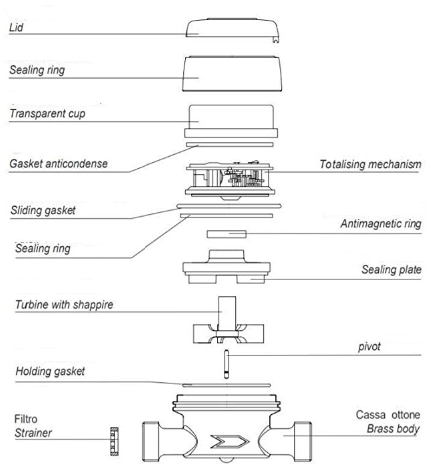

Single jet Water Meter LXSC-D3/P Structure
