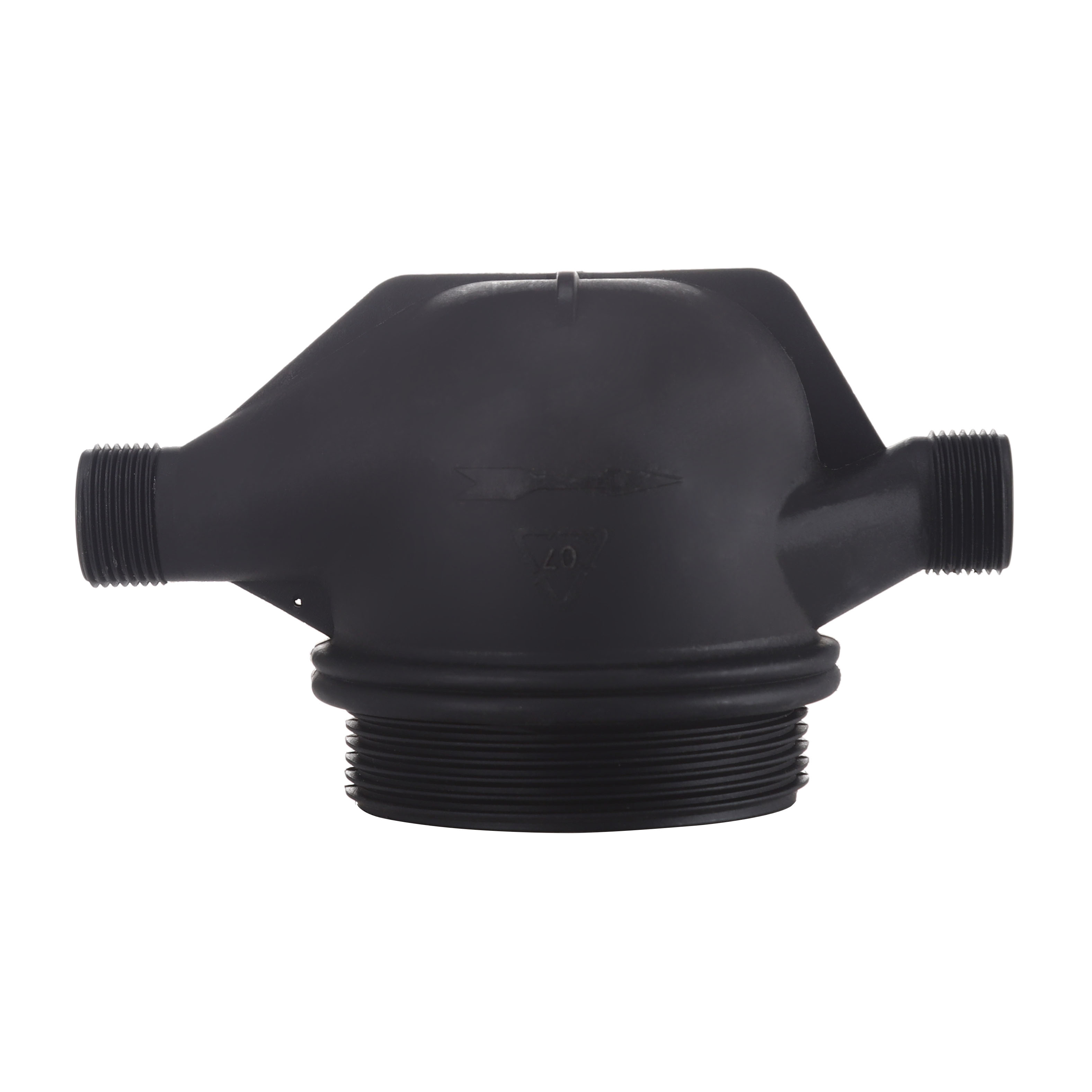

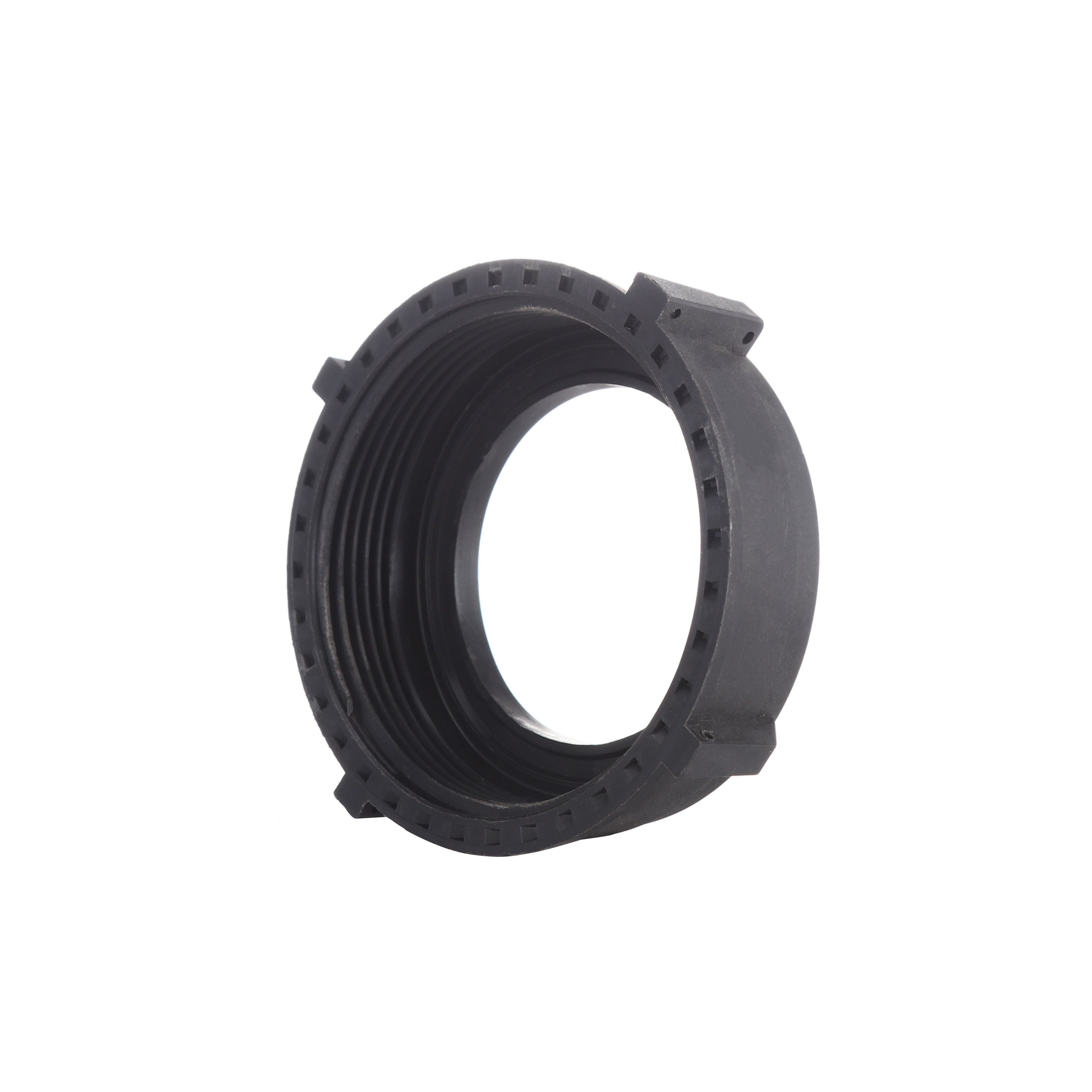

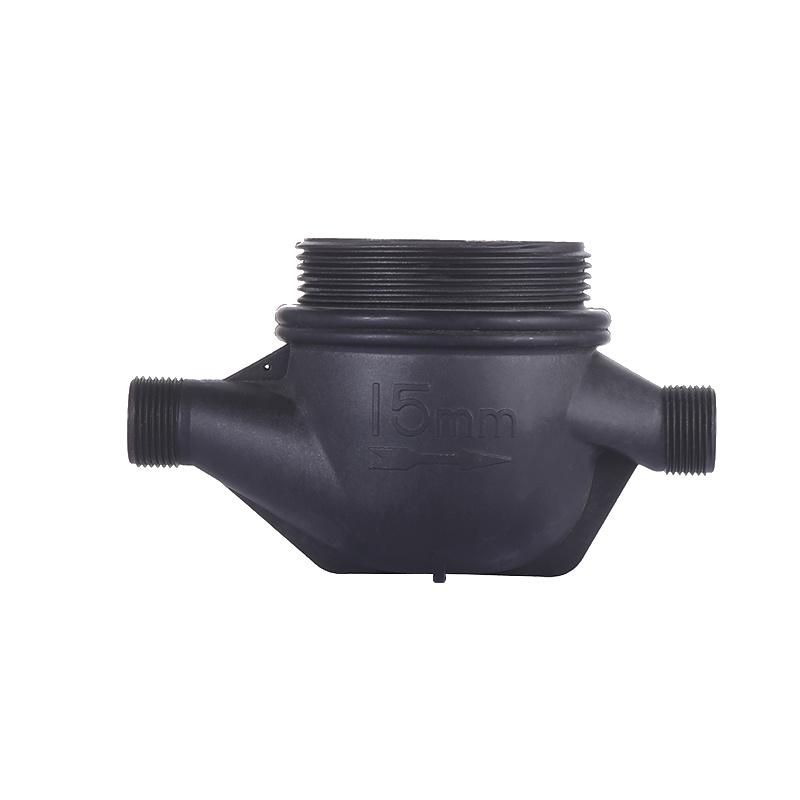

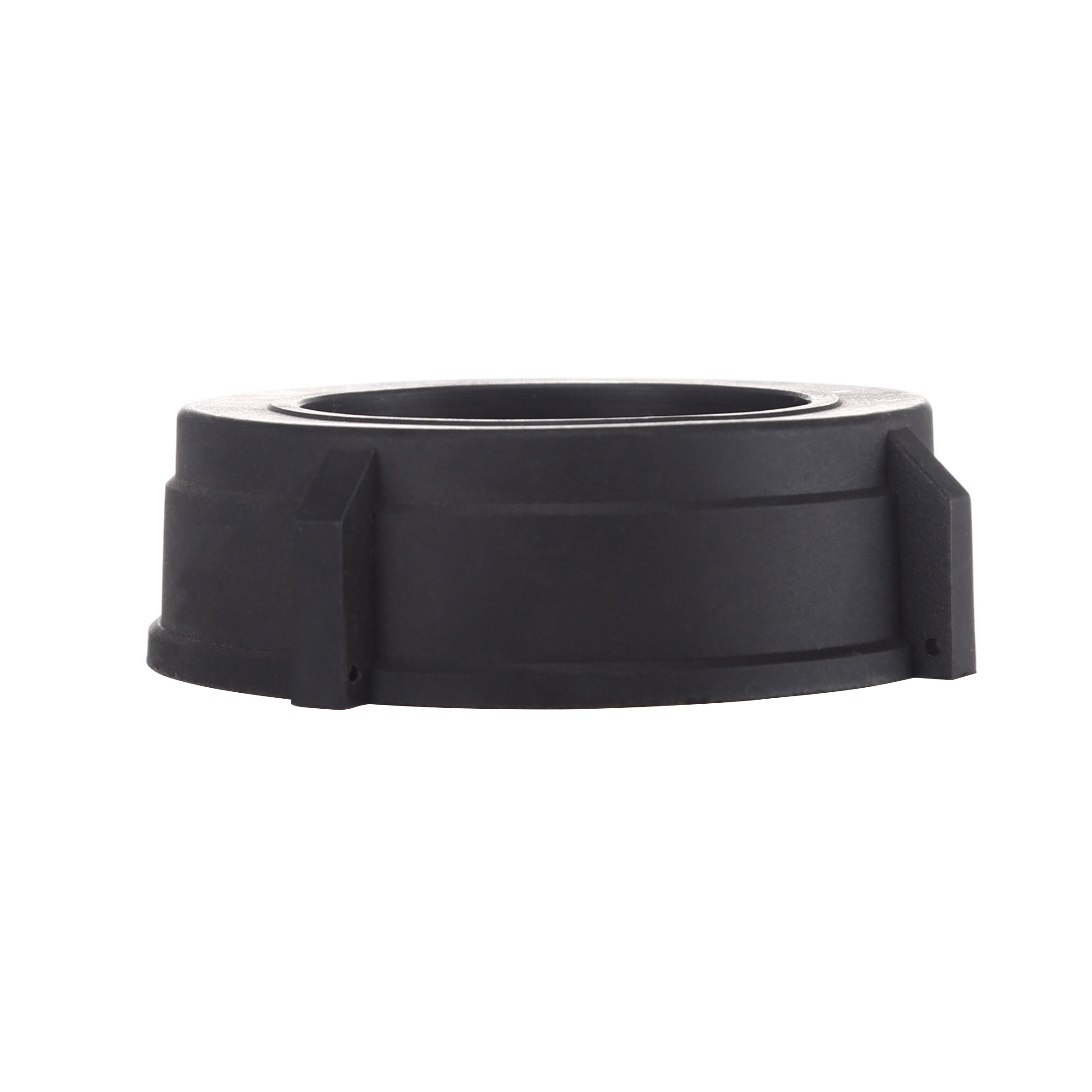

Plastic Multijet Water Meter Shell and Cover Ring

Plastic Multijet Water Meter Shell and Cover Ring

Features: 1. Design: The plastic shell are designed with multiple water inlet jets, typically arranged in a radial pattern. This design allows for accurate measurement of water flow in both low and high flow rates. 2. Material: The water meter shell and cover ring are made of high quality and durable Nylong, PA66. 3. The water meter shell can be made with or without out-adjust screw structure.

DESCRIPTION：

Application:

The Plastic Shell and Cover ring are used for Multijet Dry Type Vane Wheel Water Meters, which are commonly used in various applications for measuring the flow rate of water in residential and commercial applications.

Features:

1. Design:

The plastic shell are designed with multiple water inlet jets, typically arranged in a radial pattern. This design allows for accurate measurement of water flow in both low and high flow rates.

2. Material:

The water meter shell and cover ring are made of high quality and durable Nylong, PA66.

3. The water meter shell can be made with or without out-adjust screw structure.

Working Condition:

Cold water temperature≤35℃

Water pressure≤1.0Mpa / 1.6Mpa

Product Paramenters

Type	Size	Length	Width	Connecting Thread
	inch	L	W	D
LXSC-15E1	1/2″	165	98	G 3/4B
LXSC-20E1	3/4″	195	98	G 1B
LXSC-25E1	1”	225	103	G 1 1/4B
LXSC-32E1	1 1/4”	230	103	G 1 1/2B
LXSC-40E1	1 1/2”	245	125	G 2
LXSC-50E1	2”	300	135	G 2 1/2

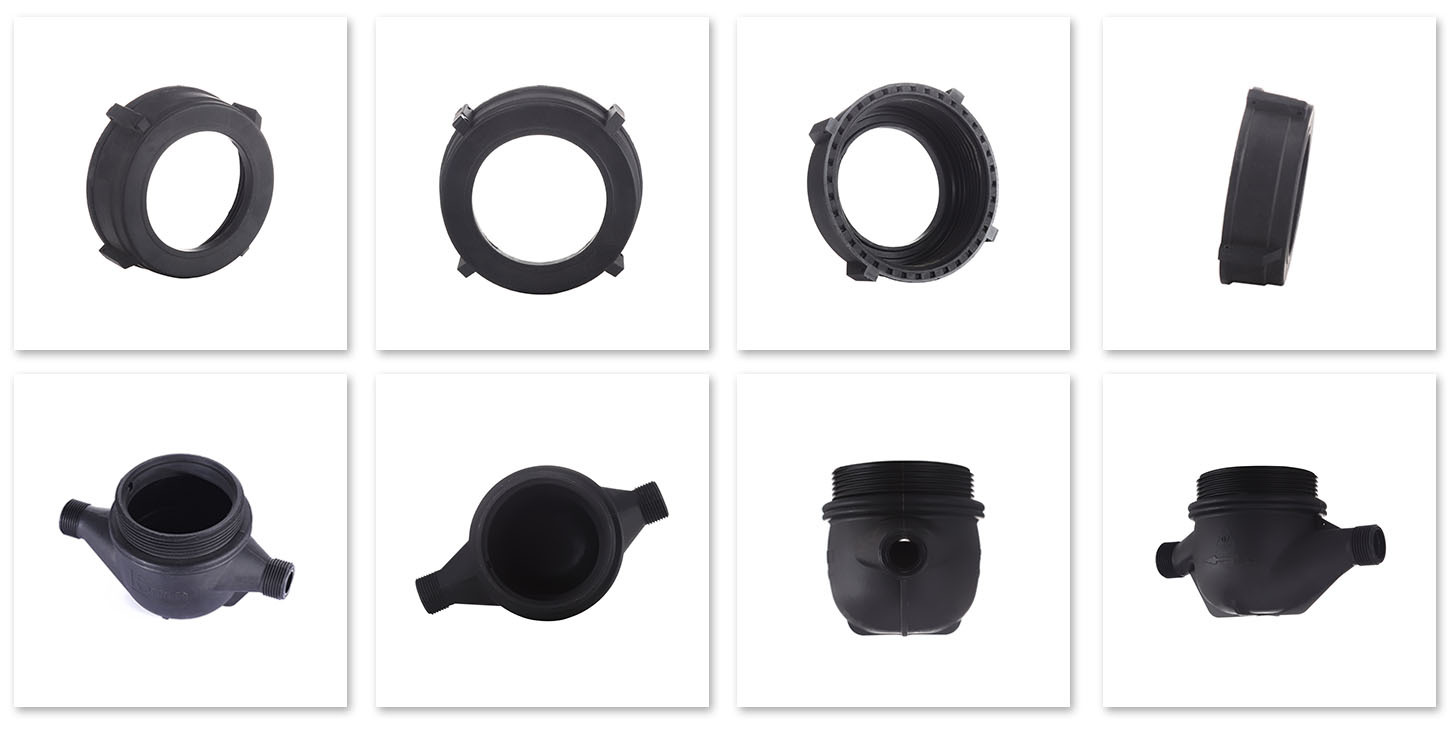

Detailed Product Sight
