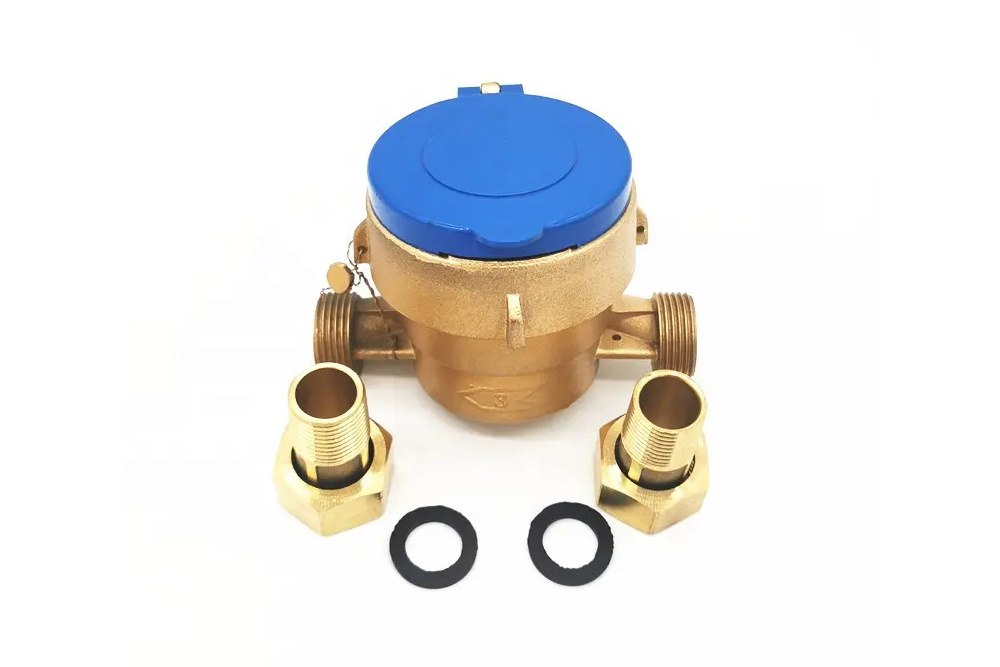

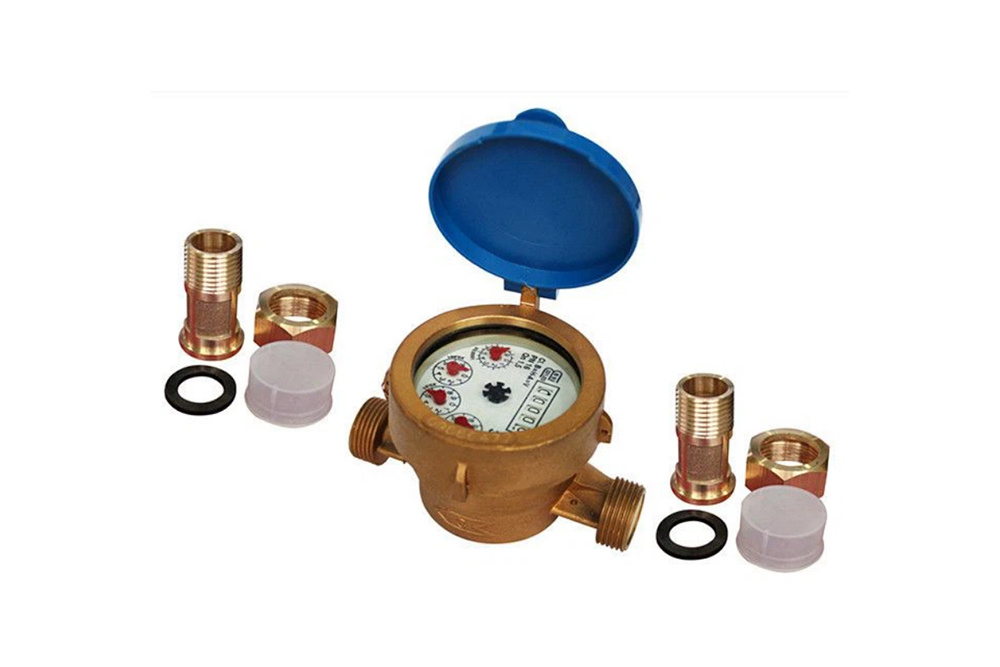

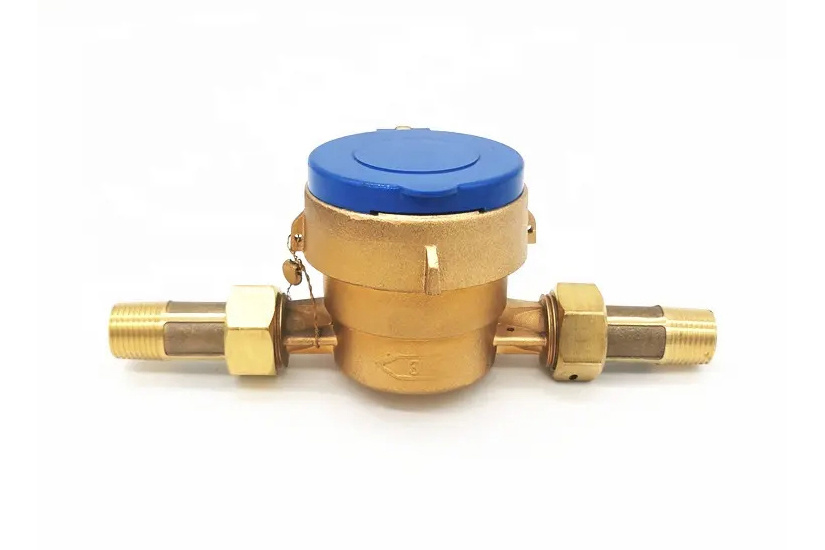

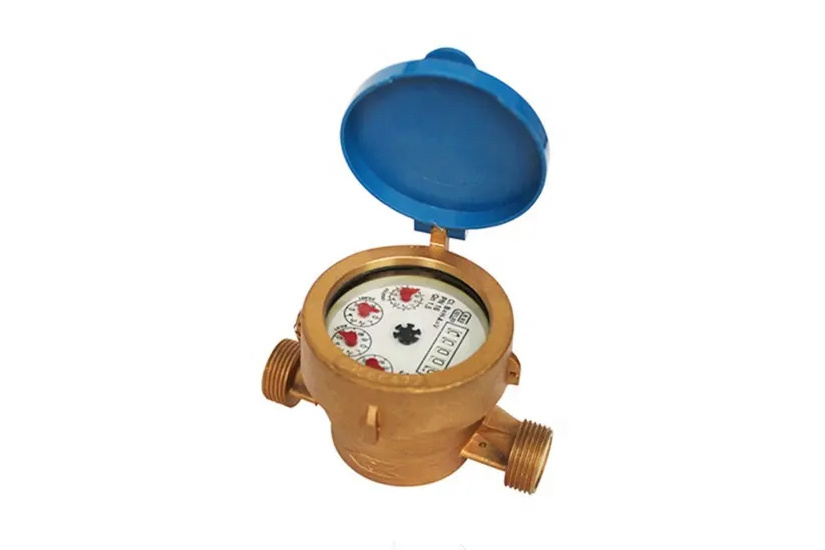

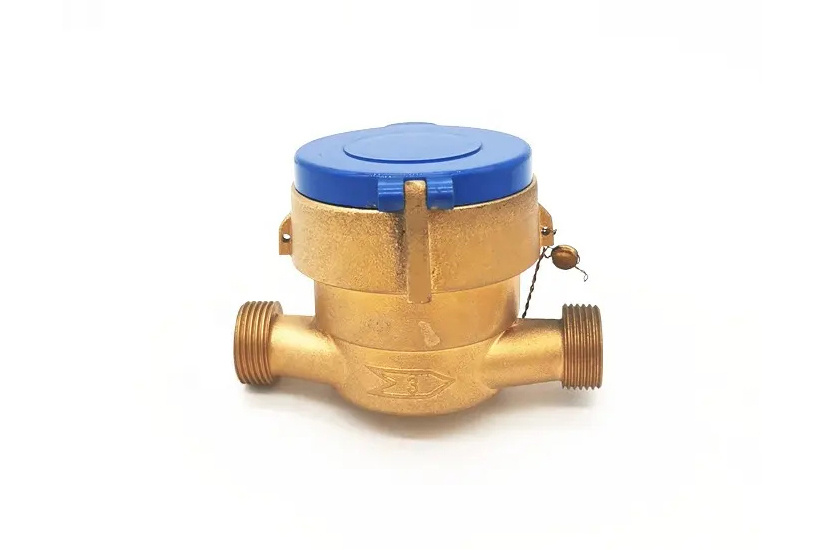

DN 15 Wet Type Single jet Brass Water Meter

DN 15 Wet Type Single jet Brass Water Meter

DN 15

Features: 1. Material: The main body of the water meter is made of brass. 2. Measuring Mechanism: The measuring mechanism consists of a rotating impeller or turbine that is driven by the water flow. The rotation of the impeller is directly proportional to the volume of water passing through the meter. 3. Ease of Installation: Single jet water meters are relatively easy to install due to their compact size and straightforward design. They can be installed horizontally or vertically, depending on the specific model and installation guidelines.

DESCRIPTION：

Application:

The 1/2" ( DN 15 ) Wet Type Single jet Brass water meters are used to measure the total amount of potable water flowing through a pipeline in household or a resident unit. It uses a single water jet to spin an impeller inside the meter, which in turn measures the volume of water passing through.

it is made of brass body with brass connectors. It is small size, light in weight. Measuring is up to ISO 4064 class B. Body length is 110mm.

Features:

1. Material:

The main body of the water meter is made of brass.

2. Measuring Mechanism:

The measuring mechanism consists of a rotating impeller or turbine that is driven by the water flow. The rotation of the impeller is directly proportional to the volume of water passing through the meter.

3. Ease of Installation:

Single jet water meters are relatively easy to install due to their compact size and straightforward design. They can be installed horizontally or vertically, depending on the specific model and installation guidelines.

Working Condition:

1. Water pressure: ≤1.6MPa (16bar);

2. Applicable to cold water, the water temperature ≤40℃

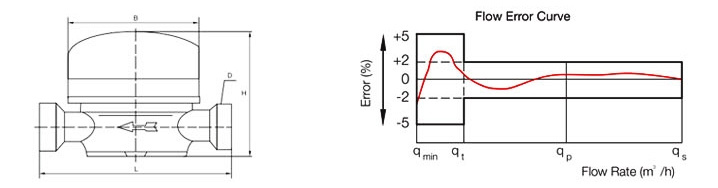

Product Paramenters

Type

Size

Length

Width

Height

Connecting Thread

Weight

inch

L (mm)

B (mm)

H (mm)

kgs

LXS-13D

1/2″

110

D:G 3/4B

d: R 1/2

0.65

Main Technical Data

Size

Class

Qmax

Qmin

Min. Reading

Max.

Reading

DN(mm)

m³/h

L/h

m³

3.0

1.5

0.12

0.0001

99999

Maximum Permissible Error

±5% at the Low-Zone ranging from min flow/Qmin (including Qmin) to transitional flow/Qt (excluding Qt).

±2% at the High-Zone ranging from transitional flow/Qt to max flow/QS (both Qt and Qs included), if for hot water meter, ±3% error acceptable.

If you are interested in any of Tongtuo’s water meters, please contact us by : junetang@nbtongtuo.com
