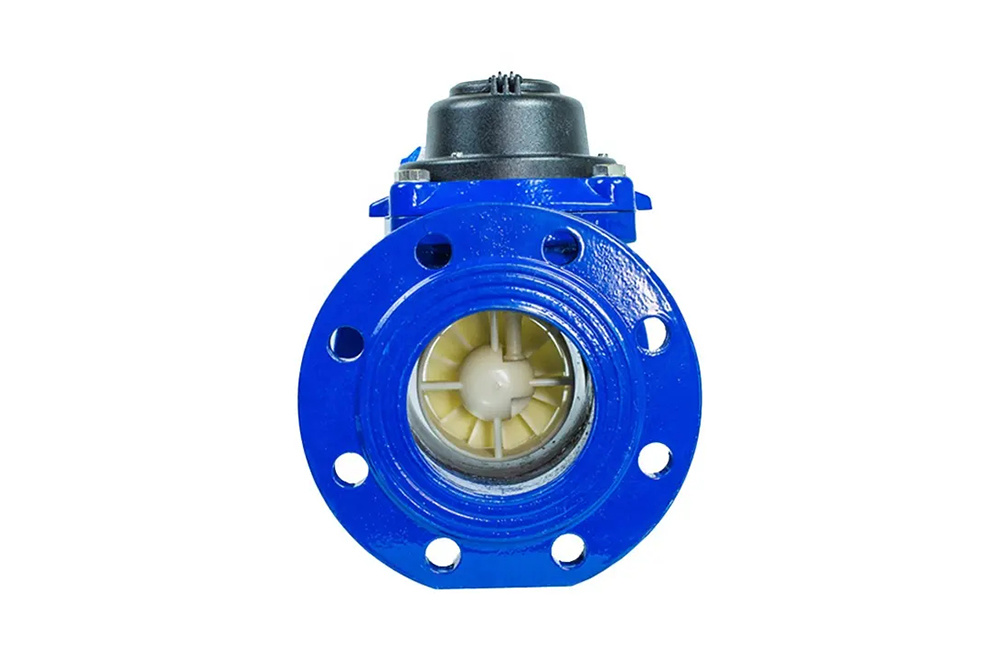

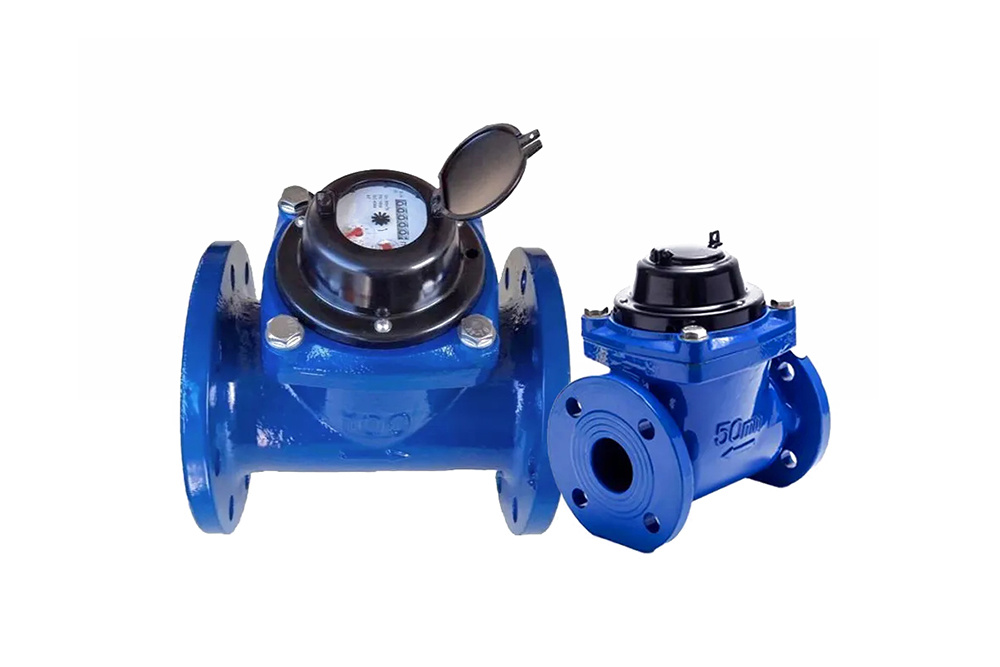

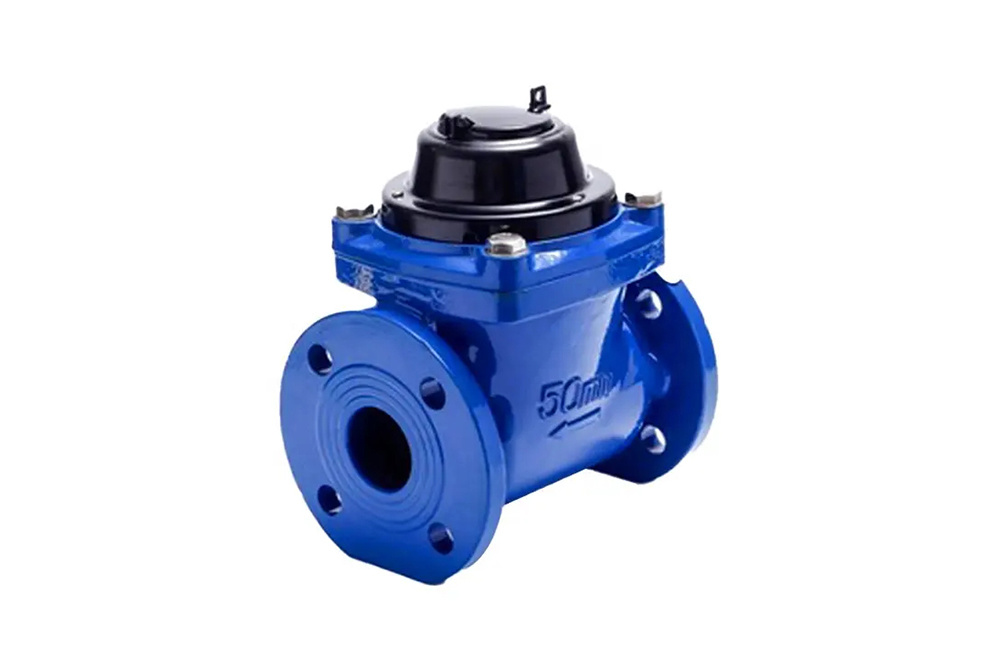

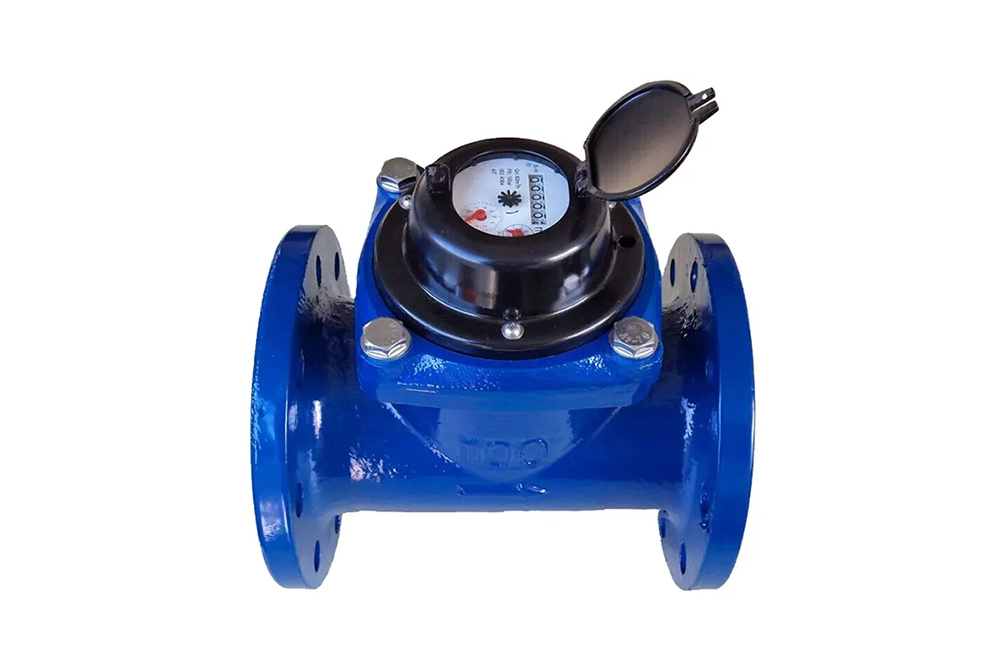

Removable Dry Dial Woltman Type Flange Ended Water Meter

Features and Advantages

— Removable element structure, easy installation and maintenance, register for universal use within this range detachable without removing the meter from the pipeline.

— Dry-dial, magnetic drive, sensitive action, small pressure loss.

— Vacuum sealed register ensures the dial keep free from fog and keep the reading clear in a long term service.

— Selected high quality materials for steady and reliable characteristic.

— Technical data conform to international standard lSO 4064.

Application

This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.

Optional Features

--Plastic register, copper register and full glass register.

--Accuracy: R=50 or R=80.

--Size:DN50-500 mm.

--Cold or Hot water.

--Reed switch option.

--Flange standard can be chosen.

--360 degree rotate can be selected.

--Cast iron, Ductile iron,sS304,sS316 body can be selected.

--Working pressure: PN16 or PN25.

--Colour can be changed on body and cover.

Working Conditions

--Water temperature: 0.1 C~40C for cold water meter.

--0.1C~90C for hot water meter.

Maximum Permissible Error

-ln the lower zone from qmin inclusive up to but excluding qt is ±5%.

-ln the upper zone from qt inclusive up to and including qs is ±2%(士3% for hot water meter).

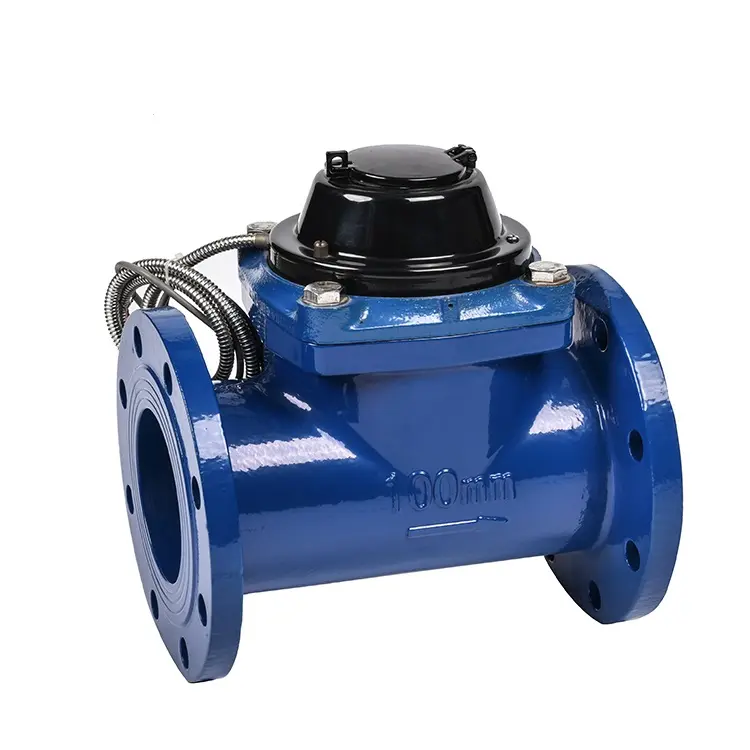

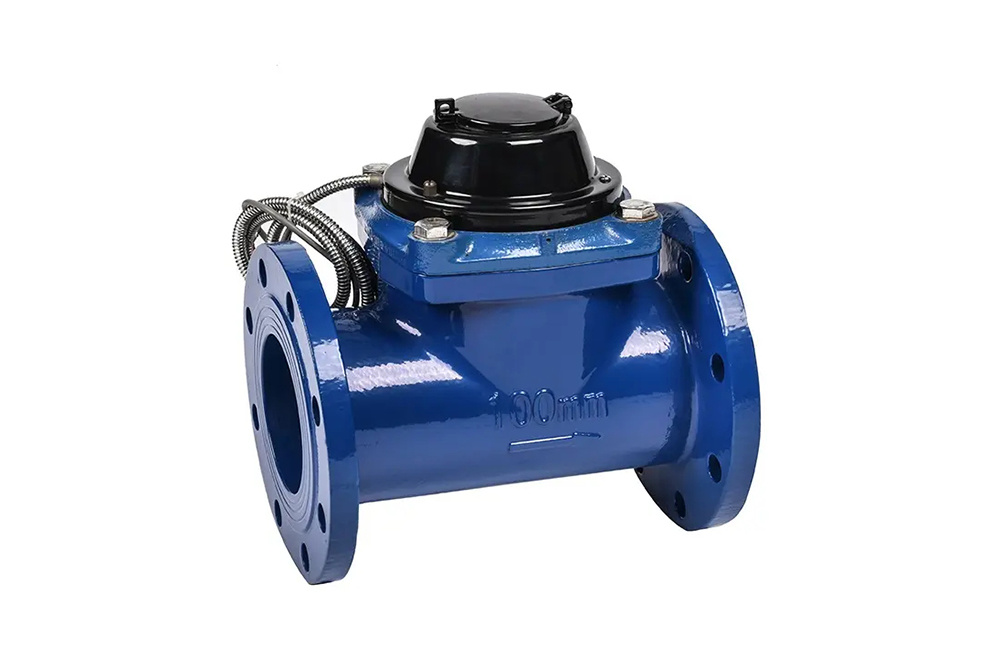

Remote reading option / Woltman water meter with pulse output

Main technical parameters

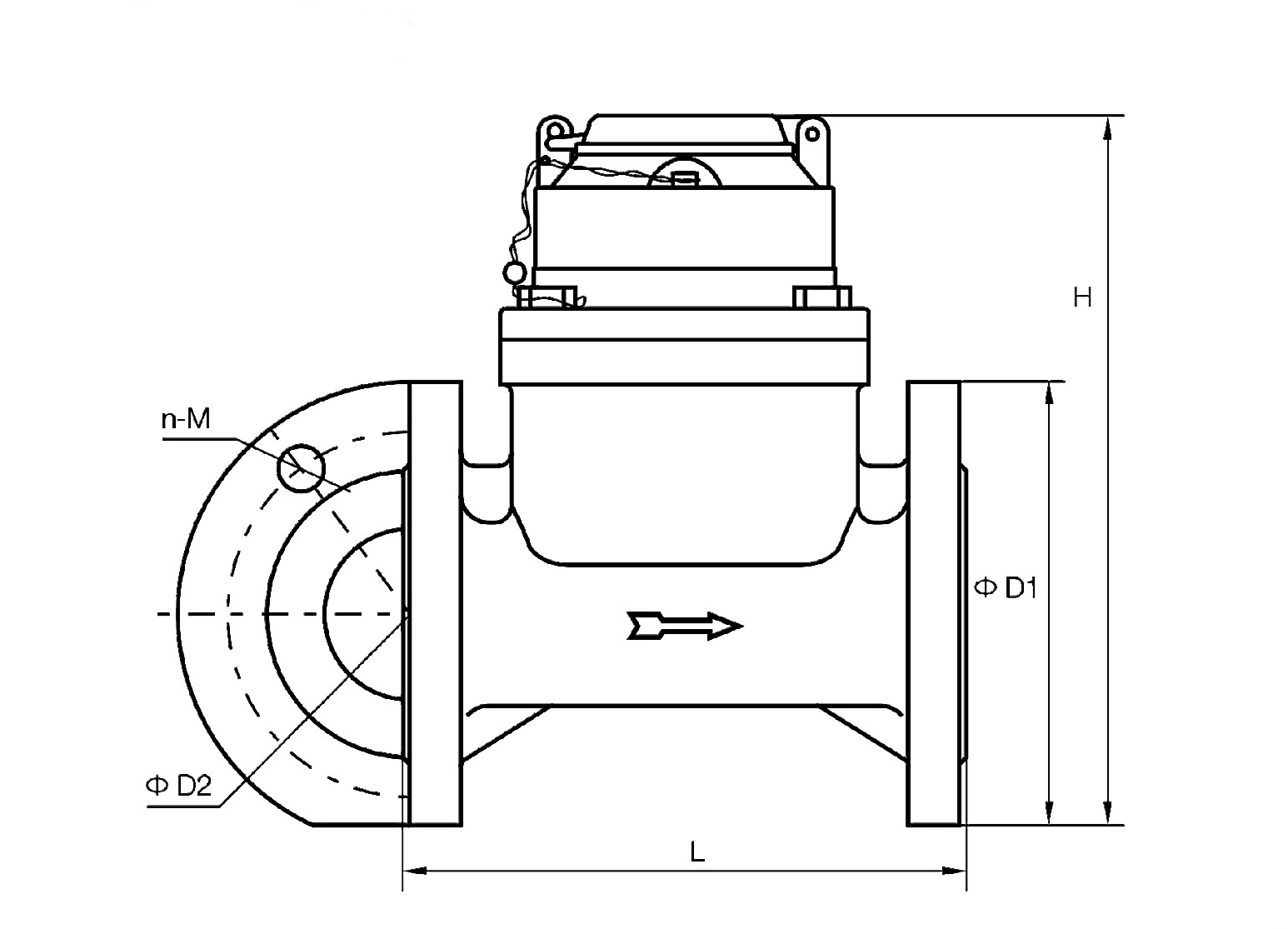

DIMENSIONS AND WEIGHT
